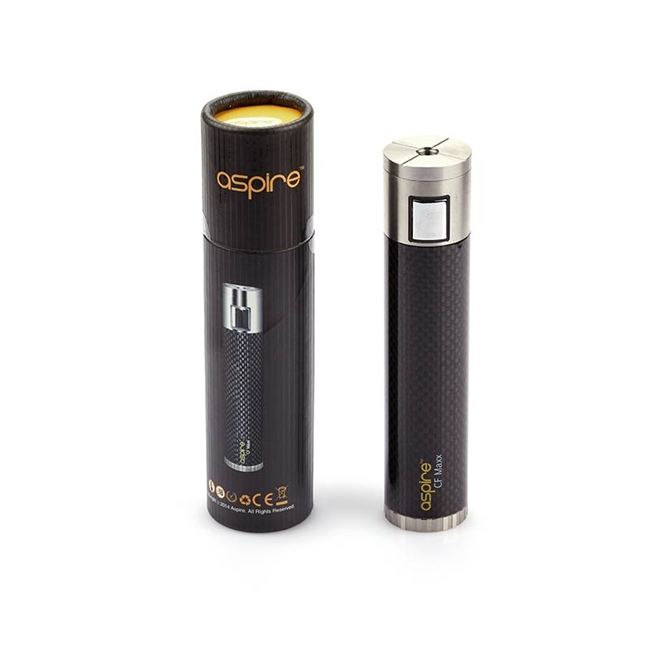

The Aspire CF MAXX 50w VV Battery
Aspire continues to push the limits of vaping technology with its newest mod – the Aspire CF Maxx. The structural design and circuit board are finely crafted so the device is extremely reliable and stable. All the safety elements you expect from a high-end mod are present in this device, including overcharge protection, short circuit protection, safety cutoff/atomizer protection, and low voltage protection. The CF Maxx 50W features stainless steel endpoints, a stainless steel power button, and a sleek carbon fiber coated tube that make this mod a gorgeous addition to your collection of batteries. The Aspire CF Maxx has a spring-loaded contact pin that ensures proper connection with the atomizer at all times.

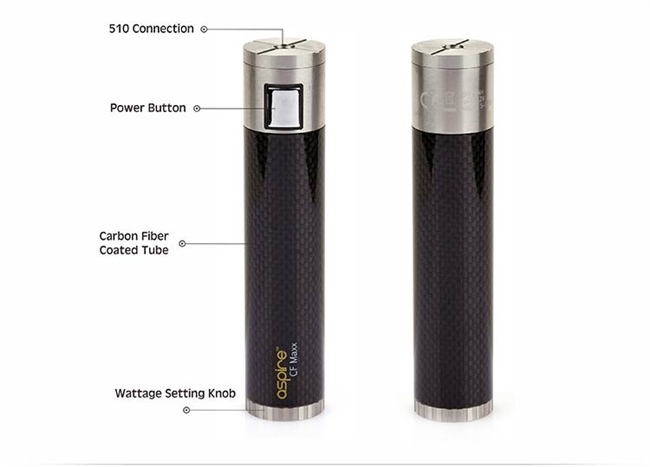

stainless steel endpoints
carbon fiber coated tube
3000mah large capacity
Variable wattage 5-50W
1 – Aspire CF MAXX 50w VV Battery
Built in 5 click on/off feature allows you to carry or store the battery without the worry of it firing when you dont want it to.
To Turn ON/OFF Press button 5 times in succession in 2 seconds. The LED will blink 3 times (both blue and orange lights) and the button will illuminate Blue when active and ON.Repeat this procedure to turn battery OFF. Blue LED light will display for battery cell voltage of 3.5-4.2V. The Orange LED indicates a voltage less than 3.5V.
This CF Battery comes with an adjustable voltage rotary knob for your convenience.
Built in protection features :
Overcharge Protection: When battery is overcharged (voltage beyond 4.25V), the built-in microchip will automatically stop battery charging.
Over Discharge Protection: When battery cell voltage is less than 3.2V (low battery), the atomizer will remain OFF, and the Orange LED light will blink 15 times.
8 second safety cutoff
Atomizer Short Circuit Protection: If heating coils are short-circuited while vaping, the LED lights (both colors) blink 3 times, and the battery will default to �sleep mode.�
Charging Short Circuit Protection: If the charger is short-circuited while charging, the battery will default to OFF position, stop charging, and the LED lights (both colors) will flash 6 times.
Lock and Unlock Function: To lock the battery, press the button 5 times in succession in 2 seconds. The LED lights (both colors) will flash 3 times. Repeat this procedure or recharge to unlock.
